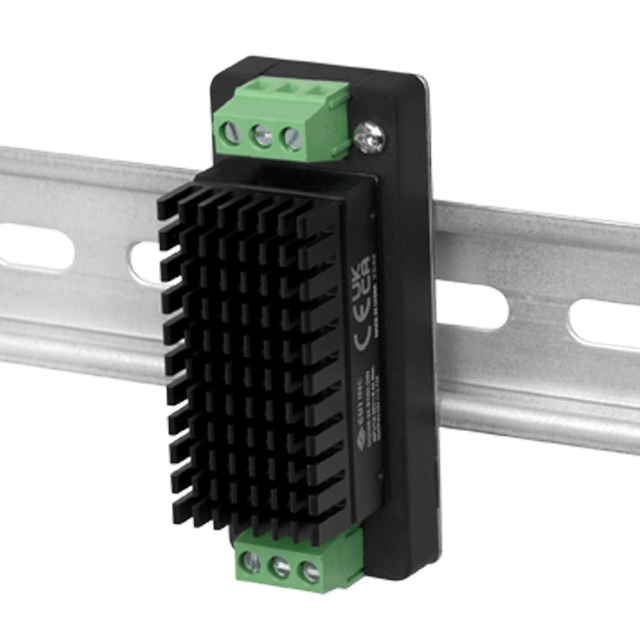

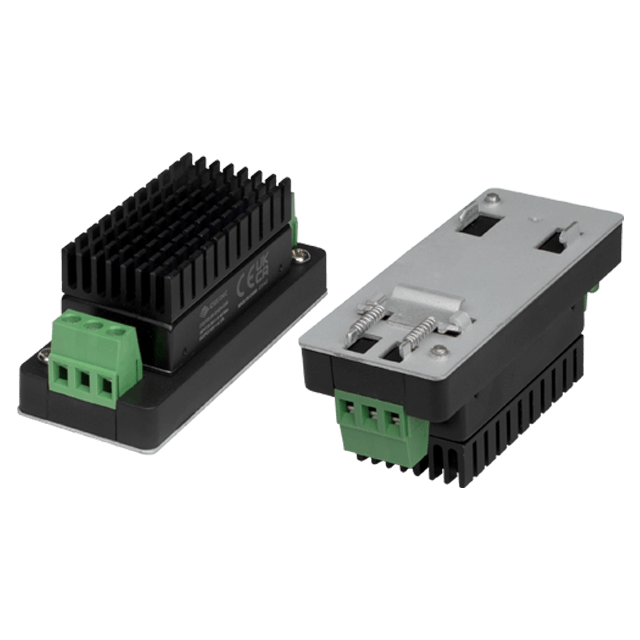

DQD50-DIN Series

The DQD50-DIN series is a 50 W DC-DC converter offering 1500 VDC isolation. Housed in a compact DIN-rail package, this series carries a temperature range of -40°C to +105°C, making it a reliable option for ITE and industrial applications.

Features

Single regulated outputs
Over current protection (OCP)
Short circuit protection (SCP)
Over voltage protection (OVP)
Input under voltage protection (UVLO)
Remote on/off control

Specifications

Power (W): 50
Input Voltage Range (VDC): 9 ~ 75
Output Voltage (VDC): 5 ~ 24
Operating Temperature Range (ºC): -40 ~ +105
Standard Footprint: 2" x 1"
Isolation (VDC): 1500
Isolated: Yes
Safety Standards: 62368
Safety Approvals: CE, UKCA
RoHS Compliant: Yes
