Battery Chargers
Our state-of-the-art power solutions, which include liquid-cooled on-board models, convert AC or DC input voltages to DC charging voltage up to 25 kW, guaranteeing peak performance under demanding conditions.
Attribute Filters
Power (W)
Input Voltage Min. (VAC)
Input Voltage Max. (VAC)
Output Voltage (VDC)
Output Current (A)
Operating Temperature MIN (ºC)
Operating Temperature MAX (ºC)
Dimensions LxWxH (mm)
Cooling Type
Brand
13 Products
| Product | Power (W) | Voltage Input Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Dimensions LxWxH (mm) | Cooling Type | Market |
|---|---|---|---|---|---|---|---|---|
|
19200 | 90 ~ 305 | 450 ~ 900 | 30 | -40 ~ +60 | 594 x 372 x 95 | Liquid | eMobility, EV |
| 3 | N/A | 12 ~ 24 | 20 | -40 ~ +60 | 54 x 115 x 110 | Convection | Industrial | |
| 115 ~ 230 | 85 ~ 264 | 12 ~ 48 | 2.1 ~ 14 | -40 ~ +60 | 106 x 103 x 138 | Convection | Railway | |

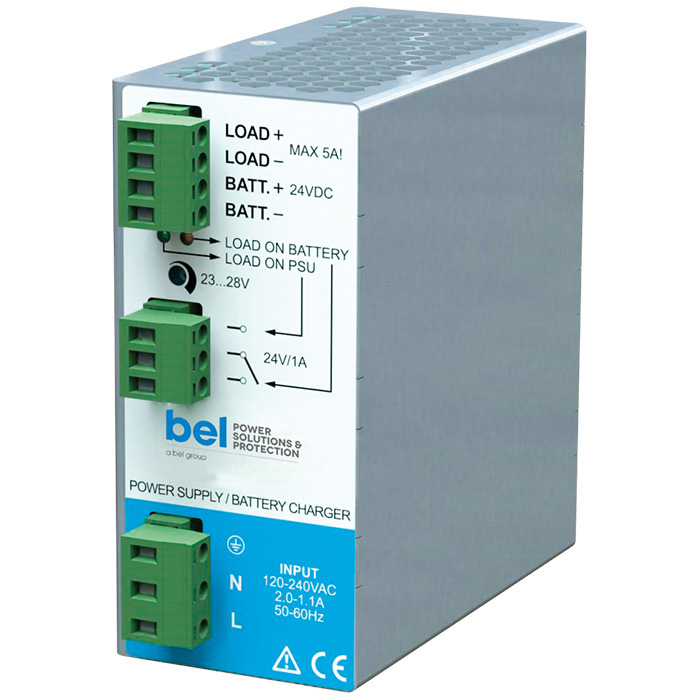

| 120 | 120 ~ 240 | 12 ~ 24 | 5 ~ 7 | -40 ~ +70 | 54 x 115 x 110 | Convection | Industrial | |
| 344 | 85 ~ 264 | 24 | 12.6 | -40 ~ +60 | 114 x 194 x 138 | Convection | Railway | |

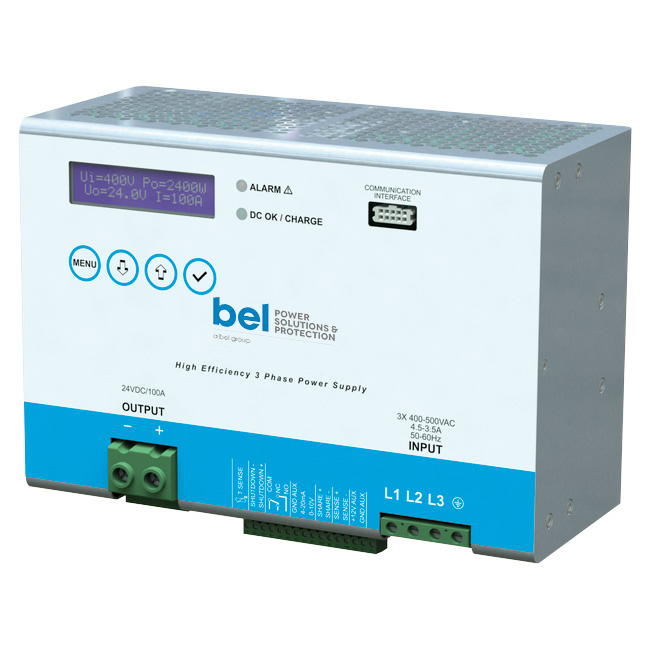

| 2400 | 340 ~ 550 | 24 ~ 170 | 14 ~ 100 | -40 ~ +70 | 233 x 101 x 160 | Convection | Industrial, ITE | |
| 8000 ~ 12000 | 350 ~ 528 | 110 | 73 ~ 110 | -25 ~ +55 | 347 | Fan | Industrial, Railway | |
| 10000 ~ 15000 | 350 ~ 528 | 110 | 91 ~ 137 | -40 ~ +70 | 440 x 340 x 131 | Fan | Railway | |
| 20000 | 90 ~ 264 | 250 ~ 435 | 52 | -30 ~ +60 | 650 x 491 x 100 | Liquid | eMobility, EV | |
| 20000 | 90 ~ 264 | 450 ~ 850 | 42 | -30 ~ +60 | 650 x 491 x 100 | Liquid | eMobility, EV | |
| 25000 | 190 ~ 528 | 250 ~ 800 | 60 | -40 ~ +60 | 705 x 359 x 106 | Liquid | eMobility, EV | |
| 25000 | 460 ~ 575 | 250 ~ 800 | 37.5 | -40 ~ +65 | 524 x 340 x 84 | Liquid | eMobility, EV | |

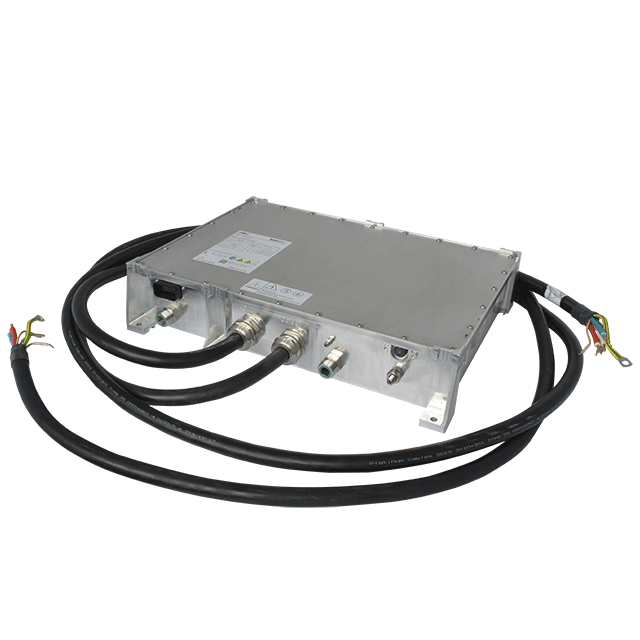

| 25000 | 800 ~ 1100 | 240 ~ 860 | 30 ~ 60 | -25 ~ +60 | 524 x 399 x 111 | Liquid | eMobility, EV |
