VCD40 Series

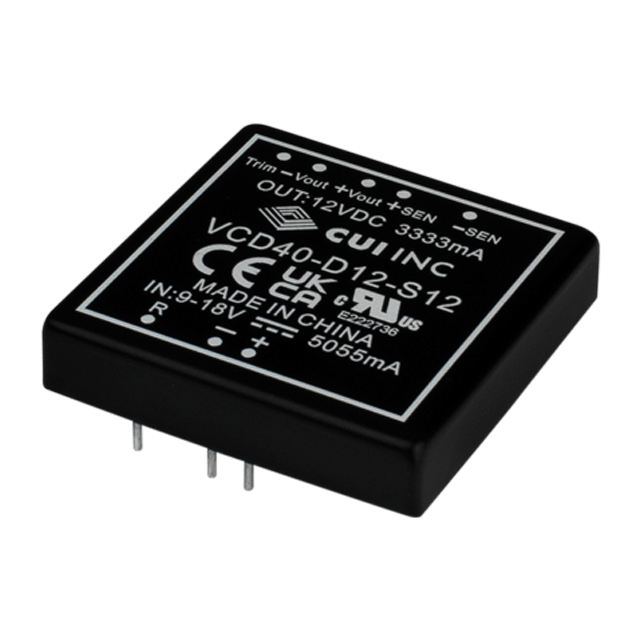

The VCD40 Series is an encapsulated 40 W isolated DC-Dc converter packaged in an industry standard 2” x 2” footprint. These low-profile modules feature a 2:1 input voltage range and offer up to 92% efficiency. Target applications for the VCD40 Series include microcontrollers, datacom, telecom, remote sensor systems and portable electronics.
Features
  • 2:1 input range
  • 2"x2" six sided shielded metal case
  • Single/dual/triple regulated outputs
  • Wide temperature (-25~71°C)
  • Efficiency up to 92%
  • EN 62368-1
  • Short circuit protection (SCP)
  • Over voltage protection (OVP)
  • Over temperature protection (OTP)
Specifications
  • Power (W): 25 ~ 40
  • Input Voltage Range (VDC): 9 ~ 75
  • Output Voltage (VDC): 2.5 ~ 15
  • Operating Temperature Range (ºC): -40 ~ +85
  • Standard Footprint: 2" x 2"
  • Isolation (VDC): 1500
  • Isolated: Yes
  • Safety Standards: 62368
  • RoHS Compliant: Yes
