SDI160-24-U

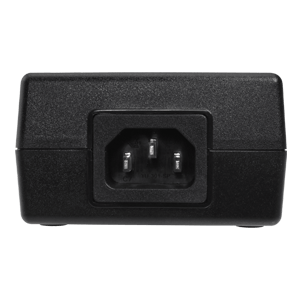

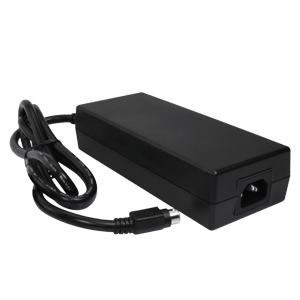

The SDI160-24-U model is a 158.4 W desktop AC-DC power supply with C14 inlet designed to meet the current US DoE Level VI efficiency standards in addition to the new UL/cUL 62368-1 standard for ICT and AV equipment. It delivers a regulated 24 VDC output with up to 6.6 A current via a DIN plug. Featuring no-load power consumption as low as 0.15 W, the SDI160-24-U external power adapter is the ideal solution to keep you one step ahead of the latest power regulations.
Buy Now
To purchase this product, contact our sales team and get a price quote.
Request Quote
Features
  • Power factor correction (PFC)
Specifications
  • Power (W): 158
  • Output Voltage (VDC): 24
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40
  • AC Inlet Type: 3 Prong (C14)
  • Input Cable Region: No Cable
  • Adapter Technology: Standard
  • Safety Standards: 62368
  • Safety Approvals: CE, FCC, UKCA, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
